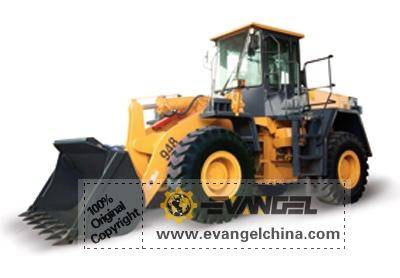

Overall Dimension

1

Length(with bucket on ground)

7248(mm)

2

Width(to outside of wheels)

2570(mm)

3

Bucket width

2685(mm)

4

Height(To the top of the cab)

3430(mm)

5

Wheel base

3080(mm)

6

Tread

2050(mm)

7

Min. ground clearance

400(mm)

Main Technical Specification

1

Rated load

4000(Kg)

2

Operating weight

13600KG

3

Rated bucket capacity

2.3(m³)

4

Max. breakout force

134kN

5

Max. dump clearance

2815(mm)

6

Dump reach

1050(mm)

7

Dump angle at any position

≥45⁰

8

Digging depth(with bucket bottom horizontal)

190(mm)

9

Min. turning radius

(1) Outside of bucket

6300(mm)

(2) Outside of rear wheel

5730(mm)

10

Pivot angle frame

38+1⁰

11

Oscillating angle of rear axle

+11^o

12

Lifting time of bucket

≤6.2(sec.)

13

Lowering time of bucket

≤3.8(sec.)

14

Dumping time

≤1.8(sec.)

15

Traveling speed(Km/h)，2 forward and 1 reverse

(1) 1^st gear forward

11

(2) 2^nd gear forward

36

(3) 1^st gear reverse

15

Diesel Engine

1

Model

Cummins engine with Tier 3
QSB6.7

2

Type

Direct injection. Turbocharged. Air to air coolant

3

Rated output

129 (kW)

4

Rated speed

2200(r/min)

5

Inter-bore of cylinder/stroke

102  (mm)

6

Displacement of cylinder

6.7 (L)

7

Model of starting motor

42MT

8

Power of start motor

7.5(KW)

9

Voltage of starting motor

24(V)

10

Max. Torque

643(N.M)

11

Starting type

Electric

12

Min. specific fuel consumption

206(g/Kw.h)

13

Engine specific oil consumption

0.9-1.6(g/Kw.h)

14

Net weight

452(kg)

Transmission System

Torque Converter

1

Model

YJHSW315

2

Type

4-elements. double stage

3

Torque ratio

4

4

Cooling type

Pressure oil circulating

Transmission case

1

Model

Z40-3000(ZL50X25CE)

2

Type

power shift, spur gear constant-mesh

3

Gear shift position

 2 Forward and 1 reverse gears

Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Gear ratio of main reducer

5.286

3

Type of final reducer

Single stage planetary

4

Gear of ratio of final reducer

4.4

5

Gear ratio

23.258

6

Max. drawing force

120kN

7

Type of main reducer

20.5-25-16PR

Working Device Hydraulic System

1

Model of oil pump
(Working pump+Radiation pump)

CBGj 3125/1032

2

System pressure

180(kgf/cm²)

3

Model of Multi-way directional valve

7130-C79

4

Pilot valve

606-1021-1213

5

(D*L)Dimension of lifting cylinder

Ф150*80*695(mm)

6

(D*L)Dimension of tilting cylinder

Ф180*90*468(mm)

Steering  System

1

Type

Middle articulated frame. Co-axis flow amp. Steering

2

Model of oil pump
(Steering pump+Pilot pump)

CBGj 2063/1016-XF

3

Model of redirector

BZZ1-E630C+FKA-146020

4

Model of distribution valve

FLD-F48H

5

System pressure

14MPa

6

Dimension of steering cylinder

Ф70*40*460(mm)

Brake System

1

Type of traveling  brake

Air over oil activate 4 wheel brake with capliar disc brake

2

Air pressure

7-8(kgf/cm²)

3

Type of emergency brake

Automatic cutting-off air brake

4

Type of parking brake

inner expand hoof
Automatic boosting. inner expand hoof

Radiation System

1

Model of motor

CMGj1025

Oil Capacity

1

Fuel(diesel)

200(L)

2

Engine lubricating oil

13.5(L)

3

Oil for converter and gear box

45(L)

4

Oil for hydraulic system

150(L)

5

Oil for driving axles(F/R)

20/20(L)

6

Oil for brake

2X1.5(L)
