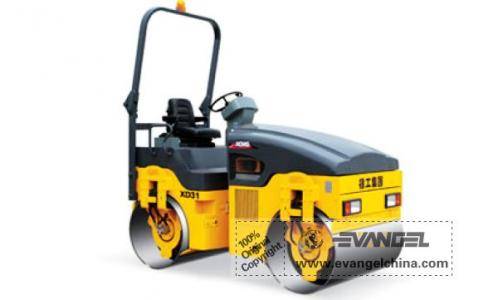

XD31 Light compaction equipment

Feature

XD31 vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.

·It adopts the articulated frame, featuring flexible steering and excellent stability.

·It adopts hydraulic drive, vibration and steering, featuring high reliability.

·The front and rear wheels are equipped with mud-scrapper and watering device.

·The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.

Parameter

Model	Unit	XD31
operating weight	kg	3000
static linear load(front/rear)	N/cm	116/110
speed	km/h	0-10
gradeability in theory	%	30
min. turning radius （L/R）	mm	2800/4000
min. ground clearance	mm	320
wheel base	mm	1800
steering angle	±°	30
swing angle	±°	10
vibration frequency	Hz	60
vibrating system-max. pressure	Mpa	18
steering system-max. pressure	Mpa	16
nominal amplitude	mm	0.4
centrifugal force	kN	34
compacting width	mm	1200
drum diameter	mm	750
engine model		Detuz F2L2011
rated engine speed	r/min	2600
rated engine power	kw	22
overall dimensions(length/width/height)	mm	2733/1306/2900
rated oil wear	g/kW.h	220
hydraulic tank capacity	L	55
fuel tank capacity	L	80
water tank capacity	L	150

All technical parameters are subject to change without prior notice because of technical improvements.
