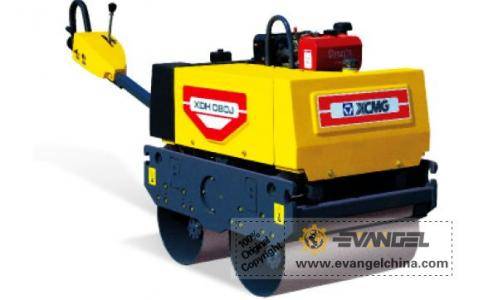

XDH080J Light compaction equipment

                                                            XDH080J Light compaction equipment


XDH080J walking type vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.

Changfa vertical wind cooling diesel engine, electrical starting type. With full hydraulic double drum drive, the handrail is equipped with travel control lever, throttle control lever, vibration switch, power switch, and safety device for reverse.

The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.


Description Unit XDH080J
Operating weight kg 800
Roller diameter  mm 400
Roller width mm 708
Rolling system   Tandem type both drum drive
Power line   Hydraulic transmission
Final drive   Gear
Brake system   Hydraulic, mechanical pin lock
Speed km/h 0-3.6
Gradeability % 35
Centrifugal force kN 15.8
Frequency Hz 55
Engine model   CF186FE
Rated speed r/min 2600
Rated power kw 5
Fuel tank capacity L 5.5
Hydraulic tank capacity L 16
Sprinkler capacity L 40
Overall Dimensions(L/W/H) mm 2690×756×1108
Transport Dimension(L/W/H) mm 1337×756×1976


         All technical parameters are subject to change without prior notice because of technical improvements.
