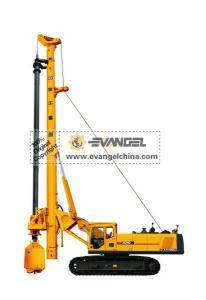

XRS680 Rotary Drilling Rig

- The product performance improves greatly compared with the same class machine; the drilling depth of the standard

configuration can reach 67.5m.
- Adopt single rope main winch, effectively solving the wear problem of the steel wire rope. The diameter of the steel wire

 rope is 30mm, greatly improving the breaking force and service life, saving the rope, and improving the safety.
- Adopt Weichai EFI engine and automatic idling and extreme power control, which can save the fuel, facilitate the maintenance,

reduce the expense, and meet the domestic and international requirements of the exhaust emission.
- Install the infrared camera to observe the service condition of the main winch in the cab day and night.
- Adopt the excavator cab which has beautiful appearance and better comfortableness during operation.
- Many configurations can be installed according to the customers’ requirements (such as landing leg cylinder, automatic slew).

Model





XRS680

Engine

Model



WP10.290

Rated power

KW

213

Drill unit

Max. output torque

kN·m

200

Rotary speed

r/min

726

Max. drilling diameter

mm

Φ2000

Max. drilling depth

m

Standard configuration67.5(friction drag×5),optional configuration53(lock×4)

Pressurized cylinder

Max. pressure

KN

200

Max. hoisting power

KN

200

Max. stroke

m

5

Main winch

Max. hoisting power

KN

190

Max. hoisting speed

m/min

65

Auxiliary winch

Max. hoisting power

KN

80

Max. hoisting speed

m/min

60

Mast obliquity

Sidewise/forwards/backwards



±4°/5°/15°

Chassis

Max. travel speed

KM/h

1.5

Max. gradeability

%

35

Min. ground clearance

mm

468

Track shoe width

mm

800

Max. track width

mm

35004400

Hydraulic system

Working pressure

Mpa

32

Overall operating weight

t

70

Dimension

Working condition

mm

10260×4400×22120

Transportation condition

mm

16355×3500×3457
