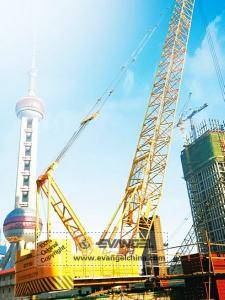

QUY100 Crawler Crane
Parameter
|
|
|
|
|
|---|---|---|---|
|
Max. lifting capacity |
Boom |
t |
100 |
|
Jib |
t |
11 |
|
|
Max. load moment |
kN.m |
5395 |
|
|
Boom length |
m |
18～72 |
|
|
Boom elevating angle |
° |
0～80° |
|
|
Fixed jib length |
m |
12～24 |
|
|
Fixed jib offset |
|
10°,30° |
|
|
Max. single line hoist speed (at 5th layer with no load) |
m/min |
100 |
|
|
Max. single line elevating speed (at 5th layer with no load) |
m/min |
45 |
|
|
Max. swing speed |
r/min |
1.4 |
|
|
Travel speed |
km/h |
1.1 |
|
|
Min. elevating time |
s |
240 |
|
|
Winch hoist speed(with full load) |
m/min |
4 |
|
|
Max. grade-ability |
|
30% |
|
|
Mean ground pressure |
MPa |
0.0927 |
|
|
M11-C250 Engine output |
kW |
184 |
|
|
Total mass (main hook block,18m boom) |
t |
114 |
|
|
Max. base machine weight for transport |
t |
40.0 |
|
|
Max. base machine dimension for transport (L×W×H) |
m |
9.6×3.3×3.3 |
|
