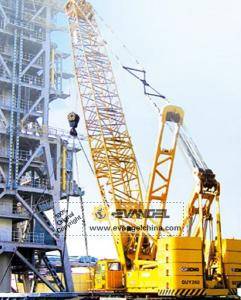

QUY260 Crawler Crane
Parameter
|
|
|
|
|
|---|---|---|---|
|
Max. lifting capacity |
Base boom |
t |
260 |
|
Light boom |
t |
80 |
|
|
Tower attachment |
t |
75 |
|
|
Jib length |
t |
37 |
|
|
Max. load moment |
kN.m |
14715 |
|
|
Boom length |
|||
|
Base boom |
m |
18-87 |
|
|
Light boom |
m |
60-96 |
|
|
Boom elevating angle |
° |
-3-84 |
|
|
Tower attachment length |
m |
27-60 |
|
| Jib length | m | 12-36 | |
|
Winch single line hoisting speed(with no load,at 6th layer ) |
m/min |
137 |
|
|
Boom max. single line elevating speed(at 1st layer) |
m/min |
2×27 |
|
|
Max. swing speed |
r/min |
1.3 |
|
|
Max. travel speed |
km/h |
1.1 |
|
|
Grade-ability |
|
30% |
|
|
Mean ground pressure |
MPa |
0.12 |
|
|
Engine output |
KW/r |
242/2100 |
|
|
Total mass (with main hook block,18m boom) |
t |
252 |
|
|
Max. weight of single part in transport state |
t |
58.0 |
|
|
Dimension of single part(turntable) in transport state(L×W×H) |
m |
12.53×3.46×3.47 |
|
