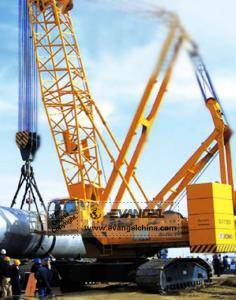

QUY350 Crawler Crane
Parameter
| Max. lifting capacity | t | 350 | |
|
Standard working condition |
Heavy boom length |
m |
24-84/350 |
|
Light boom length |
m |
42-102/190 |
|
|
Fixed Jib length |
m |
12-36/80 |
|
|
Tower attachment length |
m |
24-72/165 |
|
|
Standard superlift working condition |
Heavy boom length |
m |
36-84/350 |
|
Light boom length |
m |
78-120/190 |
|
| Fixed Jib length | m | 12-36/80 | |
|
Tower attachment length |
m |
24-72/190 |
|
|
Max. single line hoisting speed( with no load,at 6th layer) |
m/min |
130 |
|
|
Max. single line speed for boom elevating system(with no load,at 6th layer) |
m/min |
50×2 |
|
|
Max. single line speed for tower attachment elevating system(with no load,at 6th layer) |
m/min |
112 |
|
| Max. single line speed for sideways superlift elevating system (with no load,at 6th layer ) | m/min | 112 | |
|
Swing speed |
r/min |
1.0 |
|
|
Propel speed |
km/h |
0.95 |
|
|
Mean ground pressure |
MPa |
0.132 |
|
|
Engine output |
kW |
383 |
|
|
Total mass (with 350t hook block,24m heavy boom) |
t |
325 |
|
|
Max. weight of single part(main machine) in transport state |
t |
59.5 |
|
|
Dimension of single part(main machine) in transport state(L×W×H) |
m |
11.6×3.4×3.4 |
|
