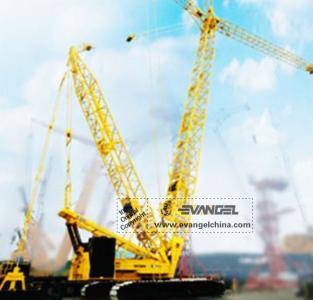

QUY650 Crawler Crane
Parameter
|
|
|
||
|---|---|---|---|
| Max. lifting capacity | t | 650 | |
|
Standard working condition |
Heavy boom length |
m |
24-84 |
|
Light boom length |
m |
66-102 |
|
|
Fixed Jib length |
m |
12-36 |
|
|
Tower attachment length |
m |
24-84 |
|
|
Standard superlift working |
Heavy boom length |
m |
36-96 |
|
Light boom length |
m |
90-138 |
|
| Fixed Jib length | m | 12 | |
|
Tower attachment length |
m |
24-96 |
|
|
Max. single line hoisting speed( with no load,at 6th layer) |
m/min |
130 |
|
|
Max. single line speed for boom elevating system(with no load,at 6th layer) |
m/min |
58×2 |
|
|
Max. single line speed for tower attachment elevating system(with no load,at 6th layer) |
m/min |
115 |
|
| Max. single line speed for sideways superlift elevating system (with no load,at 6th layer ) | m/min | 115 | |
|
Swing speed |
r/min |
0.65 |
|
|
Propel speed |
km/h |
1.0 |
|
|
Mean ground pressure |
MPa |
0.146 |
|
|
Engine output |
kW |
494 |
|
|
Total mass (with 650t hook block,24m heavy boom) |
t |
490 |
|
|
Max. weight of single part(main machine) in transport state |
t |
75 |
|
|
Dimension of single part(main machine) in transport state(L×W×H) |
m |
12×3.4×3.4 |
|
