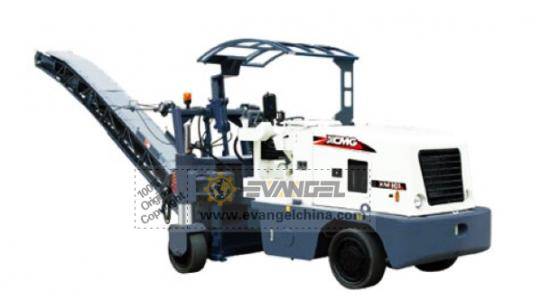

XM101 Cold Milling Machine
XM series of road miller is one of the main equipments for maintenance and construction of asphalt construction road. It is mainly applied in large area repairing and upgrading the asphalt construction lay of the highway, town road, and airport and freight yard. The miller can clear the whole asphalt construction layer one-time, and also clear the defects of the road surface, meanwhile, it can be used to dig the pot holes, and mill the roughen concrete road surface. The road miller of the company features advanced performance, high working efficiency, and easy construction technology. The easily controlled milling depth, swift and convenient operation and excellent mobility make it the ideal equipment for road maintenance; moreover, the milled material can be recycled directly.
XM101 Capability feature:
The mechanical drive milling rotor features steady milling operation and high efficiency.
The mechanical and hydraulic drive travel system owns 2-gear speed, which can make the machine adapt to the requirements of different working condition, enhancing the working efficiency.
The front steering drive axle features large steering angle and small turning radius.
The milling depth is easy to adjust. Adopting the hydraulic control, the milling depth can be stepless adjusted from several millimeters to 120 mm.
The cutter can be replaced conveniently and easily. Once the scraper is lifted, the operator will have enough space to replace the cutter.
The imported high strength and abrasion resistance cutting units feature long service life and low construction cost.
The imported hydraulic components feature high reliability.
Excellent welt milling performance, the right rear leg can quickly swing into the frame, which can make the miller wheel to mill along the road side or the wall.
Milled material automatic conveying device features convenient operation and high efficiency.
Model |
|
XM101 |
|
---|---|---|---|
|
Max. milling with |
mm |
1020 |
|
Max. milling depth |
mm |
120 |
Milling wheel |
Number of tools |
|
84 |
Drum diameter with tools |
mm |
660 |
|
Engine |
Model |
|
D6114 |
Rated power |
kW |
125 |
|
Rated speed |
rpm |
2200 |
|
Specifications |
Operating speed |
m/min |
0~13 |
Travel speed |
km/h |
0~13 |
|
Ground clearance |
% |
≥20 |
|
Ground clearance |
mm |
≤120 |
|
Operating weight |
kg |
14500 |
|
Volume |
Fuel tank |
L |
210 |
Hydraulic oil tank |
L |
160 |
|
Water tank |
L |
360 |
|
Conveyor |
Width |
mm |
400 |
Measurement |
Overall machinery LxWxH |
mm |
4583×2294×3130 |
Conveyor LxWxH |
mm |
6428×700×610 |
|
Travel mode |
|
Tire |
All technical parameters are subject to change without prior notice because of technical improvements.
