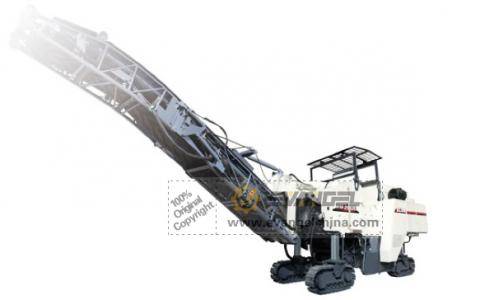

XM200E Cold Milling Machine
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
⊙High strength milling rotor drive by belt ,reliable and high efficiency.
⊙Four tracks driving system ,power traction ,four kids of steering modes ,flexible to travel.
⊙Full automatic power adjusting system ,realizing the automatic power distribution between the milling power and driving power.
⊙Advanced automatic control system of milling depth ,easy operation and reliable.
⊙Electrical control engine Nation Ⅲ emission standard ,reliable and economical efficiency of fuel comsuption.
⊙All hydraulic components and transmission parts adopts international well-known brands ,advanced performance and reliable operation.
|
Model
|
|
XM200E
|
|
|
|
Max. milling with
|
mm
|
2000
|
|
|
Max. milling depth
|
mm
|
300
|
|
Milling wheel
|
Number of tools
|
|
162
|
|
Drum diameter with tools
|
mm
|
980
|
|
|
Engine
|
Model
|
|
DHP12
|
|
Rated power
|
kW
|
353
|
|
|
Rated speed
|
rpm
|
2100
|
|
|
Specifications
|
Operating speed
|
m/min
|
0～34
|
|
Travel speed
|
km/h
|
0～5
|
|
|
Ground clearance
|
%
|
80
|
|
|
Ground clearance
|
mm
|
≤320
|
|
|
Operating weight
|
kg
|
28500
|
|
|
Volume
|
Fuel tank
|
L
|
800
|
|
Hydraulic oil tank
|
L
|
300
|
|
|
Water tank
|
L
|
2300
|
|
|
Conveyor
|
Width
|
mm
|
800
|
|
Measurement
|
Overall machinery LxWxH
|
mm
|
6750×2500×2900
|
|
Conveyor LxWxH
|
mm
|
8000×1150×900
|
|
|
Travel mode
|
|
Track
|
|
All technical parameters are subject to change without prior notice because of technical improvements.
