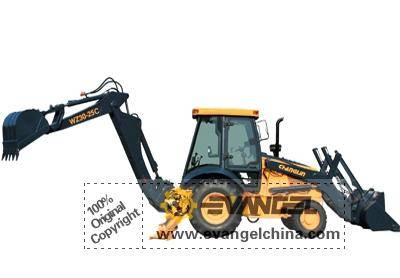

WZ30-25C Backhoe Loader
Description of Backhoe Loader:
Backhoe loader, commonly shortened to backhoe, is a type of construction machinery/construction equipment. The backhoe loader commonly composes a tractor, fitted with a shovel/bucket on the front and a small backhoe on the back.
Features of Backhoe Loader WZ30-25C:
1. Equipped with WD DETUZ engine
2. 4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option
Applications of Backhoe Loader WZ30-25C:
The backhoe loaders’ versatility and compact size makes them one of the most popular construction machinery/construction equipment. These backhoe loaders are widely used for larger projects such as building a house, fixing city roads, mining, etc.
Working principle of Backhoe Loader WZ30-25C:
Because the design of backhoe loaders is top-heavy and the swinging weight of the backhoe could cause the vehicle to tip, backhoe loaders use hydraulic outriggers when digging and lower the loader bucket for additional stability.
Specifications of Backhoe Loader WZ30-25C:
|
Overall Dimension |
|||
|
1 |
Length(with bucket on ground) |
7077(mm) |
|
|
2 |
Width |
2350(mm) |
|
|
3 |
Load Bucket width |
2328(mm) |
|
|
4 |
Height(To the top of the cab) |
2735 (mm) |
|
|
5 |
Height(To the top of the digging pole) |
3424 (mm) |
|
|
6 |
Wheelbase |
2155.5(mm) |
|
|
7 |
Back wheel Tread |
1557(mm) |
|
|
8 |
Fore wheel Tread |
1714(mm) |
|
|
9 |
Min. ground clearance |
355(mm) for 2WD 275(mm) for 4WD |
|
|
Main Loading Technical Specification |
|||
|
1 |
Rated load |
1700(Kg) |
|
|
2 |
Operating weight |
7400KG |
|
|
3 |
Max lifting capability |
>2500KG |
|
|
4 |
Rated load bucket capacity |
1.0(m3) |
|
|
5 |
Max. load breakout force |
>40kN |
|
|
6 |
Max. dump clearance |
2611(mm) |
|
|
7 |
Max. Dump reach |
726(mm) |
|
|
8 |
Dump angle at any position |
≥43.50 |
|
|
9 |
Min. turning radius |
||
|
|
(1) Outside of bucket |
5280(mm) for 2WD 5670(mm) for 4WD |
|
|
(2) Center of front wheel |
3795 (mm) for 2WD 4300(mm) for 4WD |
||
|
10 |
Lifting time of loading bucket |
≤5.1(sec.) |
|
|
11 |
Lowering time of loading bucket |
≤4.9(sec.) |
|
|
12 |
Dumping time |
≤0.9(sec.) |
|
|
13 |
Traveling speed(Km/h)，4 forward and 4 reverse |
||
|
|
(1) Ⅰ gear forward |
5.8 |
|
|
(2) Ⅱ gear forward |
10.5 |
||
|
(3) Ⅲ gear forward |
20.1 |
||
|
(4) Ⅳ gear forward |
40.2 |
||
|
(1) Ⅰ gear reverse |
7.0 |
||
|
|
(2) Ⅱ gear reverse |
12.6 |
|
|
(3) Ⅲ gear reverse |
24.3 |
||
|
(4) Ⅳ gear reverse |
48.6 |
||
|
Main Digging Technical Specification |
|||
|
1 |
Rated digging bucket capacity |
0.3(m3) |
|
|
2 |
Max. digging depth |
4338(mm) |
|
|
3 |
Max. digging force |
>50+10％kN |
|
|
4 |
Max. digging radius |
5481(mm) |
|
|
5 |
Max. dumping height |
3737(mm) |
|
|
Diesel engine |
|||
|
1 |
Model |
WD DEUTZ T226B |
|
|
2 |
Type |
Direct injection. Turbocharged. Water cooling |
|
|
3 |
Rated output |
70 (kW) |
|
|
4 |
Total exhaust of cylinder |
3.92(L) |
|
|
5 |
Inter-bore of cylinder/stroke |
102/120(mm) |
|
|
6 |
Voltage of starting motor |
12(V) |
|
|
7 |
Rated speed |
2200(r/min) |
|
|
8 |
Max. Torque |
360(N.M) |
|
|
9 |
Starting type |
Electric |
|
|
10 |
Min. specific fuel consumption |
216(g/Kw.h) |
|
|
Transmission System |
|||
|
1. Torque Converter |
|||
|
1 |
Model |
CARRARO |
|
|
2 |
Cooling type |
Pressure oil circulating |
|
|
2. Transmission case |
|||
|
1 |
Model |
CARRARO |
|
|
2 |
Type |
Synchromesh mechanical shift |
|
|
3 |
Gear shift posit |
4 Forward and 4 reverse gears |
|
|
3. Axle and Tire |
|||
|
1 |
Model |
CARRARO |
|
|
2 |
Type of main reducer |
spiral bevel gear, single stage |
|
|
3 |
Type of final reducer |
Single stage planetary |
|
|
4 |
Max. steering angle |
550 |
|
|
5 |
Tire type |
4WD fore tire12-16.5NHS-10PR |
|
|
|
|
2WD fore tire11L-16F3-12PR |
|
|
|
|
Rear tire 19.5L-24R4-12PR |
|
|
Working Device Hydraulic System |
|||
|
1 |
Model of oil pump |
JHP2050AXCC |
|
|
2 |
System pressure |
215(kgf/cm2) |
|
|
3 |
Model of load valve |
ZL20DC-02 |
|
|
4 |
Model of excavate valve |
ZL30DC-07 |
|
|
Steering System |
|||
|
1 |
Type |
Fore wheel Steering |
|
|
2 |
Model of steering pump |
JHP2050AXCC |
|
|
3 |
Model of Redirector |
BZZ5-E160B+ FKB-3022 |
|
|
4 |
Model of priority valve |
YXL-F160L-N7 |
|
|
5 |
System pressure |
140(kgf/cm2) |
|
|
Oil Capacity |
|||
|
1 |
Fuel(diesel) |
151(L) |
|
|
2 |
Engine lubricating oil |
11(L) |
|
|
3 |
Oil for converter and gear box |
For 2WD |
18.5(L) |
|
For 4WD |
21(L) |
||
|
4 |
Oil for hydraulic system |
110(L) |
|
|
5 |
Oil for driving axles(F/R) |
7.6＋17(L) |
|
