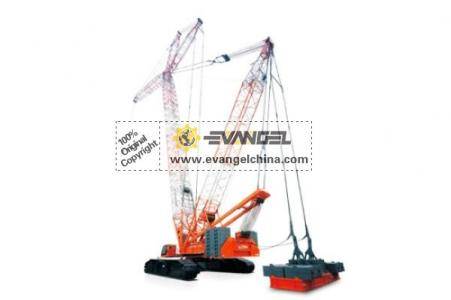

QUY80 Crawler Crane
Features
1. High hoisting speed
2. Heavy lifting capacity on fixed jib
3. Strong lifting capacity on main boom
(1) Lifting capacity on main boom is heavier than that on its counterpart in the same trade;
(2) Lifting capacity on middle-short-length boom is equal to that on its counterpart in the same trade;
(3) Lifting capacity on middle-long-length boom is 10%~50% heavier than that on its counterpart in the same trade, depending on the working radius;
(4) Compared with its counterpart in the same trade, the QUY 80 crawler crane boasts such advantages as excellent whole stability and stable lifting capacity on middle-long-length boom;
4. High cost-performance
We can provide you with more practical and economical configuration and higher cost-performance crane while guaranteeing that the whole performance of our crane is equal to or even better than its counterpart in the same trade.
Parameter
|
Item |
Value |
Remarks |
||
|
Max. lifting capacity × Radius t × m |
80×4 |
|||
|
Deadweight with basic boom t |
70.8 |
|||
|
Main boom length m |
13~58 |
|||
|
Fixed jib length m |
6~18 |
|||
|
Max. lifting capacity of fixed jibt |
7 |
|||
|
Offset angle of fixed jib° |
10,30 |
|||
|
Max. length of main boom with fixed jib m |
49＋18 |
|||
|
Max. speed of single rope on drum |
120 |
120 |
The 4th rope layer |
|
|
120 |
120 |
The 4th rope layer |
||
|
61 |
45 |
The 4th rope layer |
||
|
Slewing speedrpm |
1~2 |
|||
|
Traveling speed km/h |
1~1.68 |
|||
|
Gradeability％ |
30 |
|||
|
Ground pressureMPa |
0.083 |
|||
|
Overall dimensions (L×W×H) m |
13.5×3.4×3.2 |
Incl. mast, boom bottom section |
||
|
Engine |
199/2200 |
153/2200 |
||
|
1100/1200~1600 |
929/1300 |
|||
|
EU Stage III |
TIER 3 |
|||
|
Crawler gauge × ground contact length × track shoe widthmm |
4200×5440×800 |
Crawler carrier retracted |
||
|
2600×5440×800 |
Crawler carrier extended |
|||
Crane configuration
|
Working mechanism |
Type |
Supplier |
||
|
1 |
Hoisting winch |
Winch reducer |
QBL360M-00 |
Taian Taishan Fushen Gear Case Co., Ltd. |
|
Quick-release mechanism |
QBLK400A |
Taian Taishan Fushen Gear Case Co., Ltd. |
||
|
Variable displacement motor |
GY-A6V107HD1DFZ20590 |
Guizhou Liyuan Hydraulic Co., Ltd. |
||
|
Hoisting-control balance valve |
GCBH3-16/25-L |
Ningbo Yuzhou Hydraulic Equipments Factory/Jiangsu Dingsheng Hydraulic Co., Ltd. |
||
|
2 |
Derricking winch |
Winch reducer |
QBL260A |
Taian Taishan Fushen Gear Case Co., Ltd./Xuzhou Keyuan Hydraulic Pressure Co., Ltd. |
|
Fixed displacement motor |
A2F80W2Z2 |
Guizhou Liyuan Hydraulic Co., Ltd. |
||
|
Hoisting-control balance valve |
GCBH3-16/25-L |
Ningbo Yuzhou Hydraulic Equipments Factory/Jiangsu Dingsheng Hydraulic Co., Ltd. |
||
|
3 |
Slewing mechanism |
Slewing reducer |
HS160B |
Taian Taishan Fushen Gear Case Co., Ltd./ Xuzhou Keyuan Hydraulic Pressure Co.,Ltd. |
|
Hydraulic motor |
A2FE63/6.1WVZL10 |
Shanghai Electric Group Co.,Ltd. |
||
|
4 |
Traveling mechanism |
Traveling reducer |
XBL1000D |
Taian Taishan Fushen Gear Case Co., Ltd./ Xuzhou Keyuan Hydraulic Pressure Co.,Ltd. |
|
Traveling brake valve |
ZDF-1 |
Jiangsu Dingsheng Hydraulic Co., Ltd. |
||
|
Motor |
A6VE107HZ1/63W-VZL0750 |
Shanghai Electric Group Co.,Ltd. |
||
|
5 |
Pump |
Variable displacement piston pump |
L7V78EL2.0LZF00 |
Guizhou Liyuan Hydraulic Co., Ltd. |
|
Slewing pump(closed-circuit) |
HPV55-02LE1300E(90-L-055-KA-1-AD-80-P-3-C6-D-*) |
SAUER-DANFOSS Mobile Hydraulic Co.,Ltd. |
||
|
6 |
Valve |
Main valve (triple-valve) |
FYZ-82 |
Guizhou Fenyang Hydraulic Limited Liability Company |
|
Main valve (quadruple-valve) |
FYZ-83 |
Guizhou Fenyang Hydraulic Limited Liability Company |
||
|
7 |
Slewing ring |
013.60.1600Z |
Maanshan Fangyuan Slewing Ring Co., Ltd. |
|
|
8 |
Engine |
WP10.240、WP10.270 |
Weichai Power Co., Ltd. |
|
Lifting Capacity Table of Main Boom Unit: t
| Boom length (m) | ||||||||||
| Radius (m) | 13 | 16 | 19 | 22 | 25 | 28 | 31 | 34 | 37 | Radius (m) |
| 4.3 | 80 | 4.3 | ||||||||
| 5 | 68 | 66.8 | 5 | |||||||
| 6 | 52.3 | 52 | 51.8 | 51.7 | 6 | |||||
| 7 | 42.3 | 42 | 41.9 | 41.7 | 41.4 | 40.72 | 7 | |||
| 8 | 35.5 | 35.2 | 35 | 34.8 | 34.6 | 33.97 | 33.8 | 33.5 | 8 | |
| 9 | 30.5 | 30.2 | 30 | 29.8 | 29.5 | 29 | 28.8 | 28.6 | 28.4 | 9 |
| 10 | 26.7 | 26.4 | 26.2 | 26 | 25.7 | 25.3 | 25 | 24.8 | 24.6 | 10 |
| 12 | 21.2 | 20.9 | 20.7 | 20.6 | 20.3 | 19.9 | 19.7 | 19.4 | 19.2 | 12 |
| 14 | 17.2 | 17 | 16.9 | 16.6 | 16.2 | 16 | 15.8 | 15.5 | 14 | |
| 16 | 14.37 | 14.2 | 13.9 | 13.6 | 13.4 | 13.1 | 12.9 | 16 | ||
| 18 | 12.2 | 11.9 | 11.6 | 11.4 | 11.1 | 11 | 18 | |||
| 20 | 10.3 | 10 | 9.8 | 9.6 | 9.4 | 20 | ||||
| 22 | 9 | 8.8 | 8.6 | 8.3 | 8.1 | 22 | ||||
| 24 | 7.7 | 7.5 | 7.3 | 7 | 24 | |||||
| 26 | 6.7 | 6.4 | 6.2 | 26 | ||||||
| 28 | 5.6 | 5.4 | 28 | |||||||
| 30 | 4.9 | 4.7 | 30 | |||||||
| 32 | 4.2 | 32 | ||||||||
| Boom length (m) | ||||||||
| Radius (m) | 40 | 43 | 46 | 49 | 52 | 55 | 58 | Radius (m) |
| 9 | 9 | |||||||
| 10 | 23.8 | 23.2 | 22.6 | 10 | ||||
| 12 | 19 | 18.6 | 18.2 | 17.8 | 17.8 | 12 | ||
| 14 | 15.5 | 15.2 | 15 | 14.75 | 14.5 | 14.3 | 14 | 14 |
| 16 | 12.8 | 12.7 | 12.5 | 12.3 | 12.1 | 12 | 11.5 | 16 |
| 18 | 10.9 | 10.7 | 10.5 | 10.3 | 10.2 | 10 | 9.9 | 18 |
| 20 | 9.4 | 9.3 | 9.2 | 9 | 9 | 8.8 | 8.6 | 20 |
| 22 | 8.5 | 8.3 | 8.1 | 8 | 8 | 7.7 | 7.5 | 22 |
| 24 | 7.4 | 7.2 | 7.1 | 7 | 7 | 6.8 | 6.6 | 24 |
| 26 | 6.6 | 6.5 | 6.5 | 6.2 | 6 | 6 | 5.7 | 26 |
| 28 | 5.8 | 5.7 | 5.6 | 5.6 | 5.5 | 5.4 | 5.1 | 28 |
| 30 | 5.3 | 5 | 5.1 | 5.1 | 4.8 | 4.6 | 4.5 | 30 |
| 32 | 4.8 | 4.7 | 4.6 | 4.5 | 4.3 | 4.1 | 3.8 | 32 |
| 34 | 4.1 | 4.1 | 4 | 4 | 3.8 | 3.7 | 3.4 | 34 |
| 36 | 4 | 3.8 | 3.7 | 3.5 | 3.4 | 3.2 | 2.9 | 36 |
| 38 | 3.2 | 3.2 | 3.2 | 2.9 | 2.9 | 2.6 | 38 | |
| 40 | 3 | 3 | 2.7 | 2.6 | 2.5 | 2.3 | 40 | |
| 42 | 2.5 | 2.3 | 2.3 | 2 | 42 | |||
| 44 | 2 | 2 | 1.6 | 44 | ||||
| 46 | 1 | 1.3 | 46 | |||||
| 48 | 1.5 | 1 | 48 | |||||
| 50 | 1.2 | 0.8 | 50 | |||||
Note:
1. The value given in the load capacity chart includes the weight of hook and weight of wire rope between hook block and pulley head.
2. When tip boom is used, the lifting capacity on tip boom is the same as that on main boom within the same radius.
