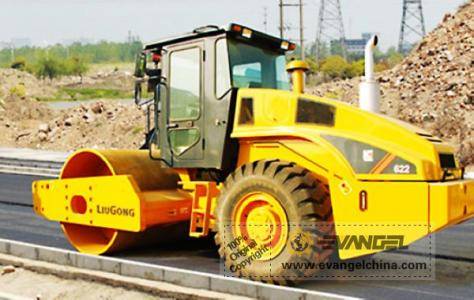

CLG622 Mechanical Vibratory Roller
Features & Benefits
Operator Comfort
Foot and hand throttle both available for use.
Vibration absorption units produced by Zhuzhou Times provide excellent performance and safe comfortable operation.
Sound reducing cab with LiuGong patented roll over safety features.
Clear 360 degree view.
Reliable
Advanced reliable Shangchai engine.
World-class parts used increases reliability and performance.
Engine cover designed for providing noise reduction, clear rear view and easy maintenance.
Sauer plunger pump and hydraulic motor provides world-class performance and reliability Parts and service you can count on.
LiuGong loader axle installed with low failure rate, easy repair and operate, widely used fitting and reliable.
Ease of Maintenance
Easy engine access and lots of maintenance space.
Front wheel bump cover is easy to change based on working conditions.
Built for Efficiency
Dual-frequency technology improves compaction in various conditions.
High compaction force and great excitation force.
Attractive useful vibration paramenters.40mm thick steel drum with powerful compaction.
Large 285L gas tank ensures over 16 hours nonstop operation.
High heat dispersion radiator with parallel design wing structure.
Designed for powerful efficient soil compaction.
Meets EU stage II/EPA tier 2 emission requirements.
Specification
Engine
Shangchai
Gross Power
128 kW @ 2,000 rpm
Net Power
115 kW (154 hp ) @ 2,000 rpm
Vibration Frequency Range
32 / 30 Hz
Centrifugal Force Range
420 / 240 kN
Working Width
2,130 mm
Operating Weight
22,000 kg
