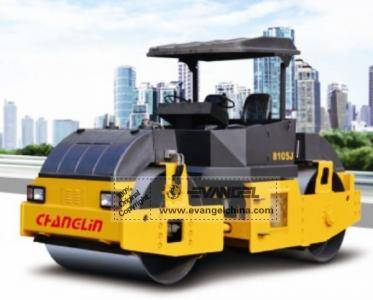

· Equipped with reliable genuine Cummins engine
· Single frequency & Double amplitude, and super centrifugal force, creates strong compacting effect.
· Reasonable configuration, reliable performance, and high working efficiency hydraulic components
· Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
|
· Overall Dimension |
|
||||||||||||||
|
1 |
Length |
4880mm |
|
||||||||||||
|
2 |
Width(to outside of wheels) |
1980mm |
|
||||||||||||
|
3 |
Height(To the top of the cab) |
2800mm |
|
||||||||||||
|
4 |
Wheel base |
3180mm |
|
||||||||||||
|
5 |
Min. ground clearance |
380mm |
|
||||||||||||
|
Main Technical Specification |
|
||||||||||||||
|
1 |
Static line force(vibratory Drum) |
259N/cm |
|
||||||||||||
|
2 |
Static line force(Driving drum) |
317N/cm |
|
||||||||||||
|
3 |
Frequency |
42HZ |
|
||||||||||||
|
4 |
Centrifugal-Force |
85/98KN |
|
||||||||||||
|
5 |
Amplitude |
0.45/0.70mm |
|
||||||||||||
|
6 |
Operating weight |
10000kg |
|
||||||||||||
|
7 |
Static Weight at Drum |
4500kg |
|
||||||||||||
|
8 |
Static Weight at rear drum |
5500kg |
|
||||||||||||
|
9 |
Min. turning radius |
6000mm |
|
||||||||||||
|
10 |
Drum diameter |
1200mm |
|
||||||||||||
|
11 |
Drum width |
1700mm |
|
||||||||||||
|
12 |
Traveling speed(Km/h)，3 forward &3 reverse |
|
|||||||||||||
|
|
(1) 1st gear (F/R) |
2.4 |
|
||||||||||||
|
(2) 2nd gear (F/R) |
4.8 |
|
|||||||||||||
|
|
(3) 3th gear (F/R) |
8.4 |
|
||||||||||||
|
13 |
Gradient capacity |
20% |
|
||||||||||||
|
Diesel engine |
|
||||||||||||||
|
1 |
Model |
Cummins engine4BT3.9-C100 |
|
||||||||||||
|
2 |
Type |
Vertical, in-line, liquid-cooled and four-stroke engine |
|
||||||||||||
|
3 |
Rated output |
75 kW |
|
||||||||||||
|
4 |
Rated speed |
2400(r/min) |
|
||||||||||||
|
6 |
Max. Torque |
330(N.M) |
|
||||||||||||
|
7 |
Starting type |
Electric |
|
||||||||||||
|
Driving System |
|||||||||||||||
|
1 |
Type |
Mechanical transmission and rear wheel drive |
|||||||||||||
|
2 |
Transmission line |
Engine-gearbox-shaft-side transmission |
|||||||||||||
|
3 |
Total ratios |
21.32 |
|||||||||||||
|
Working Device Hydraulic System |
|||||||||||||||
|
1 |
Model of vibratory pump |
|
|||||||||||||
|
2 |
System pressure |
|
|||||||||||||
|
3 |
Model of vibratory motor |
|
|||||||||||||
|
Steering System |
|||||||||||||||
|
1 |
Type |
Middle articulated frame. Full-hydraulic Steering |
|||||||||||||
|
2 |
Model of steering pump |
|
|||||||||||||
|
3 |
Model of redirector |
|
|||||||||||||
|
4 |
System pressure |
|
|||||||||||||
|
5 |
Dimension of steering cylinder |
|
|||||||||||||
|
Brake System |
|||||||||||||||
|
1 |
Type of traveling brake |
pedal control clamp brake |
|||||||||||||
|
2 |
Type of parking brake |
Hand brake Flexible shaft control clamp brake |
|||||||||||||
|
Oil Capacity |
|||||||||||||||
|
1 |
Fuel(diesel) |
160 (L) |
|||||||||||||
|
2 |
Engine lubricating oil |
15 (L) |
|||||||||||||
|
3 |
Oil for hydraulic system |
160(L) |
|||||||||||||
|
4 |
water for Sprinkle water tank |
300x2 (L) |
|||||||||||||
