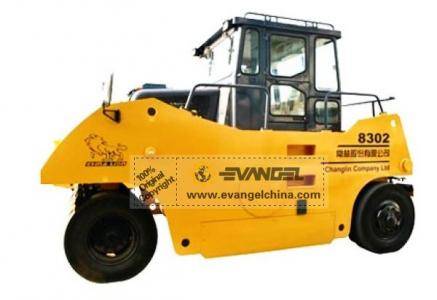

·          Overall Dimension

1

Length

5060mm

2

Width

2381mm

3

Height(To the top of the cab)

3456mm

4

Wheel base

3840mm

Main Technical Specification

1

Max Operating weight

20000kg

2

Min Operating weight

12000kg

3

Max. ballast water

2300 kg

4

Average ground press

235-395kPa

5

Min. ground clearance

270mm

6

Roller width

2250mm

7

Gradeability

≥20％

8

Min. turning radius(Outside of rear wheel)

≤8000mm

9

Traveling speed(Km/h)，2 forward and 2 reverse

(1) 1st gear forward

0~8

(2) 2nd gear forward

0~16

(3) 1st gear reverse

0~8

(4) 2nd gear reverse

0~16

Diesel engine

1

Model

Chinese Engine YC6B120-T20

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

85 kW

4

Rated speed

2000(r/min)

5

Inter-bore of cylinder/stroke

6-108×125 (mm)

6

Total exhaust of cylinder

6.87 (L)

7

Max. Torque

450 (N.M)

8

Min. specific fuel consumption

240(g/Kw.h)

9

Model and parameter of starting motor

6.6kW-24V

10

Starting type

Electric

11

Net weight

680(kg)

Transmission System

(一)Torque Converter

1

Model

YD15

2

Type

3-elements.single stage

3

Torque ratio

2.52

4

Cooling type

Pressure oil circulating

5

Type

Power shift, spur gear constant mesh

6

Gear shift position

 2 Forward and 2 reverse gears

(三)、Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Gear ratio of main reducer

5.286

3

Type of final reducer

Single stage；chaindriven

4

Chain-Gear of ratio of final reducer

2.462

5

total ratios

13.01

6

Size of tire

11.00-20-16PRC-1A

7

Number of tire

Front 4 & Rear 5

Steering System

1

Type

Tire deflexion full hydraulic steering system

2

Model of steering pump

3

Model of steering gear

Bzz1-E500C

4

System pressure

14MPa

5

Dimension of steering cylinder

Ф90x45x296(mm)

Brake System

1

Type of traveling brake

Air-over-hydraulic activate drum brake of 4 rear wheel

2

Air pressure

7-8(kgf/cm2)

3

Type of parking brake

Band brake

Manual control cutting-off air brake

Oil Capacity

1

Fuel(diesel)

 125L

2

Engine lubricating oil

15 L

3

Oil for converter and gear box

20 L

4

Oil for hydraulic system

 55L

5

Oil for driving axles (F/R)

15 L
