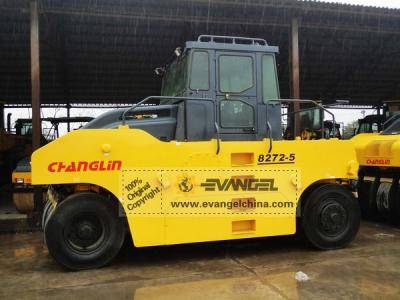

· Applied for compaction of asphalt-surface and cohesive & non-cohesive base layers ,sub-base layers of various materials
· Eleven-wheel oscillation, has high compacting effect & quality
· Double sprinkler system & large Ballast Capacity can adjust ground pressure
|
· Overall Dimension |
|||||||||||||
|
1 |
Length |
4945mm |
|||||||||||
|
2 |
Width |
2844mm |
|||||||||||
|
3 |
Height(To the top of the cab) |
3393mm |
|||||||||||
|
4 |
Wheel base |
3800mm |
|||||||||||
|
Main Technical Specification |
|||||||||||||
|
1 |
Max Operating weight |
27000kg |
|||||||||||
|
2 |
Min Operating weight |
14800kg |
|||||||||||
|
3 |
Max. ballast water |
2100 kg |
|||||||||||
|
4 |
Average ground press |
260-435kPa |
|||||||||||
|
5 |
Min. ground clearance |
270mm |
|||||||||||
|
6 |
Roller width |
2718mm |
|||||||||||
|
7 |
Gradeability |
≥20％ |
|||||||||||
|
8 |
Min. turning radius(Outside of rear wheel) |
≤9000mm |
|||||||||||
|
9 |
Traveling speed(Km/h)，2 forward and 2 reverse |
||||||||||||
|
|
(1) 1st gear forward |
0~8 |
|||||||||||
|
(2) 2nd gear forward |
0~16 |
||||||||||||
|
(3) 1st gear reverse后退一档 |
0~8 |
||||||||||||
|
(4) 2nd gear reverse后退二档 |
0~16 |
||||||||||||
|
Diesel engine |
|||||||||||||
|
1 |
Model |
Chinese Engine SC8D180G2B1 |
|||||||||||
|
2 |
Type |
Direct injection. Turbocharged. Water cooling |
|||||||||||
|
3 |
Rated output |
132 kW |
|||||||||||
|
4 |
Rated speed |
2000(r/min) |
|||||||||||
|
5 |
Inter-bore of cylinder/stroke |
6-114×135 (mm) |
|||||||||||
|
6 |
Total exhaust of cylinder |
8.27 (L) |
|||||||||||
|
7 |
Max. Torque |
700(N.M) |
|||||||||||
|
8 |
Min. specific fuel consumption |
223(g/Kw.h) |
|||||||||||
|
9 |
Model and parameter of starting motor |
7.5kW-24V |
|||||||||||
|
10 |
Starting type |
Electric |
|||||||||||
|
11 |
Net weight |
680(kg) |
|||||||||||
|
Transmission System |
|||||||||||||
|
(一)Torque Converter |
|||||||||||||
|
1 |
Model |
YD15 |
|||||||||||
|
2 |
Type |
3-elements.single stage |
|||||||||||
|
3 |
Torque ratio |
2.52 |
|||||||||||
|
4 |
Cooling type |
Pressure oil circulating |
|||||||||||
|
5 |
Type |
Power shift, spur gear constant mesh |
|||||||||||
|
6 |
Gear shift position |
2 Forward and 2 reverse gears |
|||||||||||
|
(三)、Axle and Tire |
|||||||||||||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|||||||||||
|
2 |
Gear ratio of main reducer |
5.286 |
|||||||||||
|
3 |
Type of final reducer |
Single stage；chaindriven |
|||||||||||
|
4 |
Chain-Gear of ratio of final reducer |
2.462 |
|||||||||||
|
5 |
total ratios |
13.01 |
|||||||||||
|
6 |
Size of tire |
11.00-20-16PRC-1A |
|||||||||||
|
7 |
Number of tire |
Front 5&Rear6 |
|||||||||||
|
Steering System |
|||||||||||||
|
1 |
Type |
Tire deflexion full hydraulic steering system |
|||||||||||
|
2 |
Model of steering pump |
CBGj1032 |
|||||||||||
|
3 |
Model of steering gear |
Bzz1-E800C |
|||||||||||
|
4 |
System pressure |
14MPa |
|||||||||||
|
5 |
Dimension of steering cylinder |
Ф90x45x306(mm) |
|||||||||||
|
Brake System |
|||||||||||||
|
1 |
Type of traveling brake |
Air-over-hydraulic activate drum brake of 4 rear wheel |
|||||||||||
|
2 |
Air pressure |
7-8(kgf/cm2) |
|||||||||||
|
3 |
Type of parking brake |
Band brake Manual control cutting-off air brake |
|||||||||||
|
Oil Capacity |
|||||||||||||
|
1 |
Fuel(diesel) |
250L |
|||||||||||
|
2 |
Engine lubricating oil |
22 L |
|||||||||||
|
3 |
Oil for converter and gear box |
20 L |
|||||||||||
|
4 |
Oil for hydraulic system |
90L |
|||||||||||
|
5 |
Oil for driving axles（F/R) |
15 L |
|||||||||||
