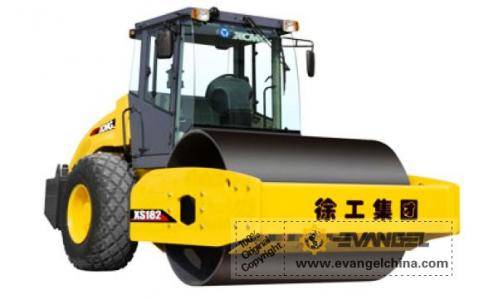

XS182 Hydraulic Single Drum Vibratory Road Roller
XS182 Hydraulic Single Drum Vibratory Road Roller
Parameter
| Category | Items | Value |
| operating mass | kg | 18000 |
| load on front drum | kg | 11500 |
| load on rear wheels | kg | 6500 |
| Width of drum | mm | 2130 |
| Min.ground clearance | N/cm | 529 |
| Nominal Amplitude(High/Low) | Hz | 28/33 |
| Centrifugal force@High/low Amp | KN | 1.86/0.93 |
| Speed | KN | 340/240 |
| Steering angle | km/h | 0-10 |
| swing angle | ¡ã | 33 |
| Gradeability | ¡ã | 10 |
| Min.Turning radius | % | 50 |
| Engine model | mm | 6500 |
| Engine model | Cummins QSB5.9 | |
| Engine power | kw | 132 |
| Rated rotating speed | r/min | 2200 |
| Hydraulic oil tank capacity | L | 240 |
| Fuel tank capacity | L | 240 |
All technical parameters are subject to change without prior notice because of technical improvements.
