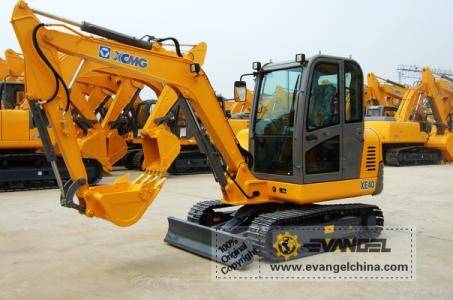

XE40 Excavator
Parameter:
|
Model |
XE40 |
||
|
Bucket capacity |
m3 |
0.14 |
|
|
Standard bucket width |
mm |
652 |
|
|
Operation weight |
kg |
4,050 |
|
|
Dimension(in transportation) |
Overall length |
mm |
5,455 |
|
Overall width |
mm |
1,650 |
|
|
Overall height |
mm |
2,440 |
|
|
Min. clearance |
mm |
350 |
|
|
发动机 |
Model |
4TNV88 |
|
|
Total displacement |
L |
2.19 |
|
|
Rated output power |
KW/rpm |
27.1/2200 |
|
|
Digging performance |
Max. digging height |
mm |
5,317 |
|
Max. dumping height |
mm |
3,697 |
|
|
Max. digging depth |
mm |
3,598 |
|
|
Max. vertical digging depth |
mm |
3,330 |
|
|
Max. digging radius |
mm |
5,810 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
2,385 |
|
|
Min. rear slew radius |
mm |
1,490 |
|
|
Bucket digging force |
kn |
23.2 |
|
|
Track type |
Rubber/steel |
||
|
Track width |
mm |
300 |
|
|
Travel System |
Track length |
mm |
2,198 |
|
Wheel base |
mm |
1,721 |
|
|
Track gauge |
mm |
1,335 |
|
|
Travel speed (Gear I/II) |
km/h |
4.2/2.6 |
|
|
Gradeability |
% |
58 |
|
|
Slew speed |
rpm |
13.5 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
1650 |
|
Bulldozing plate height |
mm |
300 |
|
|
Lifting distance |
mm |
267/365 |
|
|
Hydraulic pump type |
Variable pump×1 +gear pump×1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
65 |
|
|
Hydraulic oil tank capacity |
L |
70 |
|
