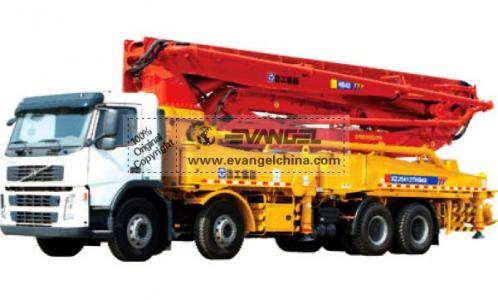

HB48 Truck-Mounted Concrete Pump
HB48-B-C-D concrete pump is the medium size of XCMG machine, and widely applied in high buildings and large foundation equipments of bridge, power plant, steel plant, water treatment plant. The machine features environmental care, safety, reliability and advanced.
Travel
Category
Item
Unit
Parameter
Parameter
Parameter
Chassis
Model
FM
Actros4141
FY1EWV
Manufacturer
VOLVO
Germany BENZ
Hino
Max. speed
km/h
94.8
85
85
Max. gradeability
35%
38%
39.90%
Min. turning diameter
m
24.605
25.9
24.4
Brake distance
m
≤10
≤10
≤10
Wheelbase
mm
1995+4405+1370
1700+4600+1350
1850+4605+1310
Tread (front/rear)
mm
2028/1837
2034/1804
2050/1855
Approach angle/departure angle
。
17/10
22/10
18.2/10
Min. clearance
mm
270
300
240
Tyre specification
315/80R22.5
315/80R22.5
315/80R22.5
Engine
Model
D13
OM501LA.Ⅲ/17
E13CTL
Output power
kw/(r/min)
294/1400~1800
300/1800
331/1800
Max. torque
N.m/(r/min)
2200/1050~1400
2000/1080
1912/1100
Displacement
l
12.8
11.946
12.913
Emission Standard
Nation III GBⅢ
Nation III GBⅢ
Nation III GBⅢ
Others
Dimension (length x width x height)
mm
12632×2500×3995
12590×2500×3995
12515×2500×3995
Total vehicle weight
kg
41000
41000
40000
Fuel tank capacity
l
410
400
400
Fuel consumption per 100km
l/100km
40
40
40
Pumping operation
Pumping system
Theoretical output(high pressure/low pressure)
m3/h
90/138
90/150
Concrete pumping pressure(high pressure/low pressure)
Mpa
13/8.7
13/8
Theoretical pumping times(high pressure/low pressure)
次/min
18/27
13/21
Max. diameter of pumping concrete aggregate
mm
40
Feeding height
mm
1540
Placing boom
Pumping slump range
cm
12-23
Reach height
m
48.1
Reach depth
m
34
Slewing radius
m
42.75
Slewing angle
。
370
1st boom stretch angle
。
90
2nd boom stretch angle
。
180
3rd boom stretch angle
。
180
4th boom stretch angle
。
250
5th boom stretch angle
。
250
Outrigger span Overall outrigger span
mm
10500
Front outrigger transverse span
mm
10450
Rear outrigger transverse span
mm
10300
Others
Dosing type
S valve
S-valve
Lubricating method
Automatic lubrication
Automatic
Controlling method
Manual/remote control
Manual/Remote control
Water tank capacity
l
600
Max. pressure of water pump
Mpa
2
|
|
