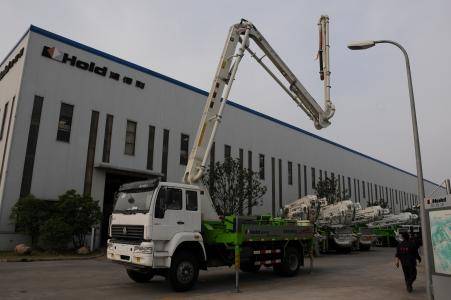

CHASSIS
Chassis Model ZZ1161M5011C
Emission Stage Euro III
Engine Power 213 kw
Engine Displacement 9.726 L
Driving Type 4*2
Wheelbase 5000 mm
Max. Running Speed 90 km/h
Min. Turning Radius 8.8 m
Approach/Departure Angle 20.5/10.5°
Tyre Type 11.00-20
BOOM SYSTEM
Max. vertical reach 23.1 m
Max. horizontal reach 19.1 m
Reach depth 12.2 m
Unfolding height 6.6m
Boom control mode Manual、wire and wireless remote control are all available
Boom type Z
Boom section articulation 90/180/256
Slewing range 365°
Front Outriggers spread 4880 mm
Rear Outrigger spread 2280 mm
End hose length 3 m
Arm attached pipeline diameter 125 mm
HYDRAULIC SYSTEM
Hydraulic System Type Open loop
System Working Pressure 32 MPa
Main Hydraulic Pump Rexroth
Main Hydraulic Pump Type A11VLO190
Main Hydraulic Pump Displacement 190 ml/r
Main Hydraulic Directional Valve VICKERS
Oil Suction&Return Filter SOFIMA
Multi-Way Valve HAVE
Pressure Relief Valve Lixin
Hydraulic Seals PARKER
Hydraulic Hose MANULI
Hydraulic Oil Tank Capacity 400 L
Water Tank Capacity 285 L
Water pump BLACK CAT
ELECTRICAL CONTROL SYSTEM
Power Supply Apollo 12V 165AH×2
Control Module Hirschman IFLEX C3-H
Working Voltage DC 24V
Relay OMRON
Proximity Switch Bedook
Wireless Remote Controller HBC
DIMENSIONS&WEIGHT
Overall Length 9764 M
Overall Width 2490 M
Overall Height 3620 M
Overall Net Weight 15820 KG
PUMPING SYSTEM
Concrete Valve S valve
Max. Concrete Output 110/65 m3/h
Max. Concrete Pressure 7/12 MPa
Hydraulic Strokes 15/25 min-1
High And Low Pressure Exchanger Available
Hydraulic Cylinder Bore/Stroke Φ140*Φ90/1800
Concrete Cylinder Bore/Strok Φ230/1800 mm
Hopper Charge Height ≤1500
Concrete Hopper Capacity 0.7 m3
Concrete Slump 120-230 mm
