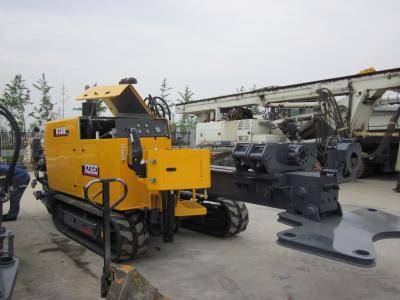

XCMG Horizontal Directional Drill (XZ320)
These kind of horizontal directional drill mainly used under the condition of non-excavating ground surface, laying and replacing various kinds of underground pipes and lines.
The machine features advanced performance, high efficiency, and comfortable operation, and the key parts
all matches international standards. It is the optimal equipment for the construction in the fields of water
supply, gas supply, as well as electricity, telecommunication, heating, and petroleum supply.
|
Model |
XZ280 |
XZ320 |
|||
|
Engine Model |
Shangchai D6114ZG |
Shangchai D6114ZG |
|||
|
Rated engine power(KW/r/min) |
140/2300 |
140/2300 |
|||
|
Max. pullback/thrusting(kN) |
280/280 |
320/200 |
|||
|
Max torque of driving head(N.m) |
10000 |
12000 |
|||
|
Driving head speed(r/min) |
0-120 |
0-140 |
|||
|
Bore diameter(m) |
400 |
|
|||
|
Max backreaming diameter(mm) |
Ø750 |
Ø800 |
|||
|
Drill pipe length(single)(m) |
3 |
3m |
|||
|
Drill pipe diameter (mm) |
Ø73 |
Ø73 |
|||
|
Drilling angle(·) |
10-23 |
10-20 |
|||
|
Max flow rate of mud(L/min) |
250 |
320 |
|||
|
Max mud pressure(bar) |
80 |
80 |
|||
|
Overall weight(kg) |
12500 |
10500 |
|||
|
Dimension (mm) |
Length |
7100 |
7100 |
||
|
Width |
2260 |
2300 |
|||
|
Height |
2450 |
2500 |
|||
