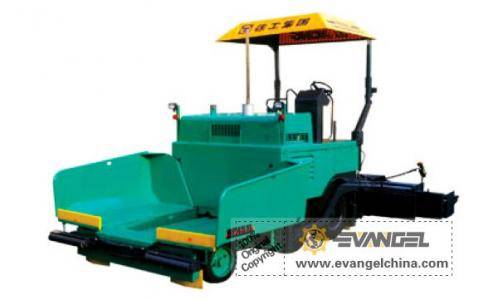

RP451L Asphalt Concrete Paver

                                                                                 RP451L Asphalt Concrete Paver

Feature



RP451Lpaver is the first full hydraulic compact type tyre asphalt concrete paver. It adopts full hydraulic drive and automatic electro-hydraulic control, featuring advanced technology and reliable performance. The minimum width of the machine is 2 meters, which is the smallest among homemade products. It is flexible and has wide applications. The rear 4WD technology effectively improves the driving force of the machine. The ergonomic design makes it simple and convenient to operate and maintain. Thus the product has high performance/price ratio.

RP451Lpaver can be widely used in the construction of highways, streets, country roads, expressways and the road maintenance work. It can effectively improve the flatness and compactness of the road surface.

Reliable drive system
It is the first set of full hydraulic drive compact type tyre asphalt concrete paver made inChina. The travel, feed and material distribution system all adopt hydraulic drive, featuring good bearing capacity, high drive efficiency, and convenient control.
The plunger pump and motor all adopt products of America Sauer brand, and all the elements all adopt products of famous brands to ensure the reliability, such as control valve, steel pipe, joint, filter, etc.

Efficient feed/ material distribution system
The feed system and distribution system are independent and they can be controlled separately.
The single chain adopts unique double scraper blade, which effectively improves the conveying capability of the machine.
There is reverse blade in the middle of the material distribution bin, which can effectively improve the material supplying from the lower part of the bin and prevent dissociation.

Efficient control system
It adopts mechanical-electric-hydraulic integrated control technology, featuring high level of automation, control accuracy and reliability.
The left/right feed/material distribution device adopts ultrasonic level gauge which can achieve automatic even feeding of materials.
The standard configuration includes electronic automatic leveling device which ensures higher evenness of the paving surface.

Strong power system
Anhui Shangchai 4JR3G1 diesel engine, 55KW, large power reserve.
The combined radiator effectively reduces the working temperature of the engine and hydraulic system and ensures long-time reliable work.

Advanced screed technology
Hydraulic stepless extension/withdrawal, applicable to the work condition of widened road.
The unique frame design, and good overall rigidness of the screed.
The stepless adjustable vibration frequency can meet the requirements for various work conditions.
The quick gas heating design, nozzle with safety switch, and the heating is quick and safe.

Performance advantages
Compact structure, flexible control.
The minimum width of the machine body is2m, which can be used freely at narrow roads.
The hopper is folded from single side, and the pushing wheel can be folded with the hopper synchronically, which improves the pass ability of the machine.
The control panel features centralized control, simple and convenient operation; combined instrument, and the work condition is very clear.

Excellent performance, wide application
Quick site transfer and paving speed, applicable to the construction of municipal highway and country road as well as the maintenance operation of expressway and various kinds of highways.
With small minimum paving width, it is applicable to the construction work of streets for residential areas and scenic spots.
Equipped with hydraulic telescopic screed, it is applicable to the paving of widened roads.
It adopts rear 4WD, which has large ground adhesive force, applicable to the paving of various kinds of road surface.
The wide hopper is applicable to various kinds of dump vehicle, the storage capacity of the hopper is up to 12t, which ensures successive paving operation.



Items Unit Parameters
Basic paving width m 2
Max. paving width m 4.5
Max. paving thickness mm 150
Paving speed m/min 0~13
Travel speed km/h 0~13
Theoretical Productivity t/h 240
Hopper Capacity t 12
Gradeability % 20
Pavement evenness mm/3m 3
Transverse levelling accuracy % ±0.03
Centre crown ratio % 0~+3
Engine model   4JR3G1
Engine power kw 55
Engine speed r/min 2200
Fuel tank capacity L 130
Machine weight t 10.5
Dimension mm 5690X2070X3590
Auger speed r/min 0~73
Conveyor speed m/min 0~30
Vibration frequency Hz 3~42
Screed heating   Gas heating
Auger and conveyor control   Automatic Control by Ultrasonic Sensors
Automatic levelling control   Simulation Control Simulation control

Items Unit Parameters
Screed model / EV35Q
Type / Gas heating, vibration
Extension / Hydraulic
Width m 2.0-4.5
Vibrator speed Hz 0-42

             All technical parameters are subject to change without prior notice because of technical improvements.
