Item |
Unit |
|
||
|
Model |
|
|

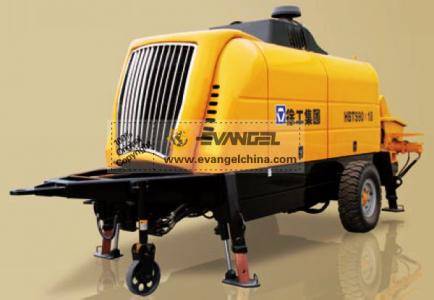

HBTS90X18 |
|
|
Displacement |
Low pressure |
m3/h |
90 |
|
|
High pressure |
m3/h |
50 |
||
|
transmission pressure |
Low pressure |
MPa |
10 |
|
|
High pressure |
MPa |
18 |
||
|
S valve change number |
Low pressure |
cycle/min. |
27 |
|
|
High pressure |
cycle/min. |
14 |
||
|
Transport cylinder inner diameter × stroke |
mm |
φ200×1800 |
||
|
Main cylinder inner diameter × stroke |
mm |
φ150×1800 |
||
|
Valve form |
|
S Valve |
||
|
Hopper volume |
m3 |
0.65 |
||
|
Products outlet |
mm |
φ180 |
||
|
Maximum allow aggregate diameter |
mm |
40 |
||
|
Engine |
Model |
|
6CTAA-C250、6CTAA8.3-C260 |
|
|
Engine power |
kW/r/min |
198/2000、196/2000 |
||
|
Hydraulic system |
Main system form |
|
Open style |
|
|
Main pump |
ml/r |
260 |
||
|
oil tank capacity |
L |
600 |
||
|
Dimension |
L |
mm |
6960 |
|
|
W |
mm |
2100 |
||
|
H |
mm |
2770 |
||
|
Switch form of high and low pressure |
|
Auto |
||
|
Water tank capacity |
L |
100 |
||
|
Oil tank capacity |
L |
210 |
||
