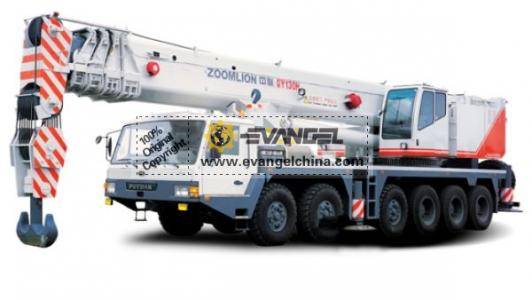

QY130H-1 Truck Crane

QY130H-1 Truck Crane



Features



The crane adopts polygon-section boom(Patent No.: ZL 2004 2 0035755.7)whichmakes the stress distributed more evenly, the load bearing condition improved, the deadweight reduced, and the load carrying capacity of boom improved.

The boom adopts two-section independent telescoping mechanism (Patent No.: ZL 2004 2 0035753.8) which greatly improves the lifting performance of themiddle-long boom.


The crane adopts double slewing mechanism and closed control circuit(Patent No.:ZL 2004 2 0035751.9)which make gear drive continuously and smoothly. In addition, it has the advantages of good cushioning performance, high accuracy of motions, high utilization ratio of energy and low heat of systemwhile the crane starts or brakes.


The crane adopts load sensor and electro-hydraulic proportional control system (Patent No.: ZL 03 2 27135.2) which can improve the jogging performance of motions.


The electric system has the faulty self-diagnosis function, which can monitor the working state of electronic control system in the course of running crane. If the abnormal phenomena happen, it can find out faults by a certain way to calculate, start the corresponding fault running modules and then display the corresponding information on interface. In this way, the service man can find out the faults and do maintenance at once.

The crane adopts CAN-bus control technology which ensures the high reliability of data transfer.

The crane adopts limit load control technology which can ensure the engine power to be full used and prevent it from shutdown due to overload.

The crane is equipped with a load moment limiter with multifunction which can ensure high safety, reliability and accuracy.


The crane adopts an operator's cab which can tilt 20°to broaden operator’s view.


The derricking mechanism adopts four modes, e.g. high speed, middle speed, low speed and jogging, to meet the requirements under different working conditions.


The driver’s cab adopts an advanced reversing rear display system which displays rear working area directly to make reversing much safer andeasier.



Parameter

Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity  kg

130000

Max. load moment of basic boom  kN.m

4980

when the working radius is 6m

Max. lifting height of basic boom m

13

Max. lifting height of main boom m

49.5

Deformation of boom is not taken into consideration.

The value in the bracket indicates the crane with extension boom.

Max. lifting height of fly jib m

66(73)

Working speed

Max. speed of single rope on main winch m/min

115

The 4th layer of drum

Max. speed of single rope onauxiliary winch  m/min

115

The 4th layer of drum

Derricking time of boom  s

90

Telescopic time of boom  s

150

Slewing speed  r/min

0~1.5

Traveling specification

Max. traveling speed  km/h

72

Max. gradeability  %

40

Min. turning circle diameter  m

24

Min. ground clearance  mm

258

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(StageⅢ)

Oil consumption per hundred kilometers L

80

Mass specification

Deadweight of crane in traveling condition kg

70000(50195)

The value in the bracket indicates advertised specification.

Complete vehicle kerb mass kg

69805(50000)

The value in the bracket indicates advertised specification.

Front axle load  kg

31000

Including boom

Intermediate and rear axles loadkg

39000

Including boom

Dimension specification

Overall dimensions(L×W×H)mm



14300×3100×3750

Advertised specification (excluding boom)

16165×3100×3818

Including boom

Base on outriggers m

7.04

Distance between outriggers m

8.5 (full extended)

5.6 (half extended)

Main boom length m

13~48

Main boom angle°

-2~80

Fly jib length m

10,17

Extension boom + fly jibm

7.5, 24

Extension boom is available as options.

Offset angle of fly jib °

0, 15, 30

Chassis

Model

ZLJ5700

Feature No.:ZLJ5700H3

Class

II

Engine

Model

OM502LA

Rated power      KW/r/min

390/1800

Max. output torque   N.m/r/min

2400/1080

Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.

Superstructure engine

Model

TAD721VE

Euro II Emission

Rated power      KW/r/min

195/2300

Max. output torque   N.m/r/min

905/1400~1800
