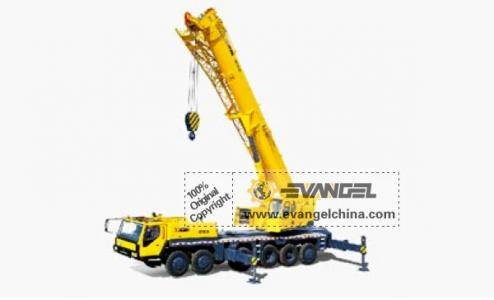

QY100K Truck Crane
Parameter
|
Classificatory |
Item |
Unit |
Parameter |
|
|
Outline dimension |
Overall length |
mm |
15230 |
|
|
Overall width |
mm |
3000 |
||
|
Overall height |
mm |
3860 |
||
|
Mass |
Total mass in travel state |
kg |
65000 |
|
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
75 |
|
Min. stable travel speed |
km/h |
0.5 |
||
|
Turning diameter |
Min. turning diameter |
m |
24 |
|
|
Min. turning diameter at boom tip |
m |
26.6 |
||
|
Power ratio |
kW/t |
7.3 |
||
|
Min. ground clearance |
mm |
310 |
||
|
Approach angle |
(°) |
23 |
||
|
Departure angle |
(°) |
15 |
||
|
Braking distance (at 30km/h) |
m |
≤10 |
||
|
Max. grade-ability |
％ |
40 |
||
|
Power |
Engine rated output |
kW/(r/min.) |
324/1800 |
|
|
Engine rated torque |
N.m/(r/min.) |
2100/1200 |
||
Main Technical Data for Lifting Operation
|
Classificatory |
Item |
Unit |
Parameter |
||
|
Lifting performance |
Max. total rated lifting capacity |
t |
100 |
||
|
Min. rated working radius |
m |
3 |
|||
|
Max. load moment |
Base boom |
kN.m |
3238 |
||
|
Fully extended boom |
kN.m |
1670 |
|||
|
Fully extended boom + Jib |
kN.m |
1127 |
|||
|
Outrigger span |
Longitudinal |
m |
7.56 |
||
|
Lateral |
m |
7.6 |
|||
|
Boom length |
Base boom |
m |
12.8 |
||
|
Fully extended boom |
m |
48 |
|||
|
Fully extended boom + Jib |
m |
48 + 18.1 |
|||
|
Jib offset angle |
° |
0, 15, 30 |
|||
|
Working speed |
Boom elevating time |
Boom raising |
s |
60 |
|
|
Boom telescoping time |
Full extending / Full retracting |
s |
140 |
||
|
Max. swing speed |
r/min |
2 |
|||
|
Hoist speed (single line at 4th layer) |
Main winch |
m/min |
110 |
||
|
Aux. winch |
m/min |
85 |
|||
