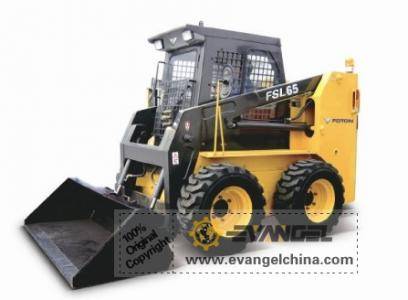

FSL65 Skid Steer Loader
Product Features of FSL65:
1. Compact structure, maneuverable movement sensitive movement suitable for narrow space operations
2. Full-wheeled driving is fit for hilly site work;
3. Working devices diversity can realize instant replacement for different operation;
|
Parameter Items |
Parameter Value |
|
Main technical parameters |
|
|
Rated load (kg) |
900 |
|
Tipping load (kg) |
1800 |
|
Bucket Capacity (m3) |
0.4-0.5 |
|
Work Flow( L / min) |
75 |
|
Power (Hp) |
65 |
|
Machine weight (kg) |
3150 |
|
Speed (km / h) |
12/18 |
|
Power (Hp) |
65 |
|
Machine weight (kg) |
3150 |
|
Speed (km / h) |
12/18 |
|
Tire Size |
12-16.5NHS |
|
Fuel oil, hydraulic oil capacity (L) |
80/80 |
|
Main dimensions |
|
|
Maximum operating height (mm) |
3690 |
|
Hinge pin height (mm) |
2920 |
|
Width including bucket (mm) |
1900 |
|
Track distance (mm) |
1500 |
|
Wheelbase (mm) |
1085 |
|
Ground Clearance (mm) |
200 |
|
Flip angle (°) |
40 |
|
Flip height (mm) |
2330 |
