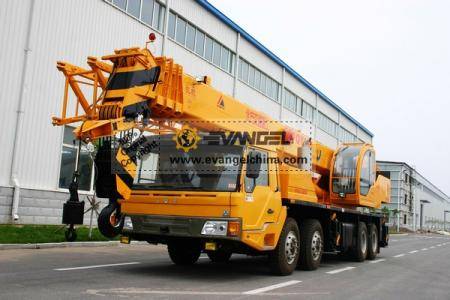

KaiFan Brand 35T (WUYUE) Crane Technical Parameters
（KFM5353JQZ35G – QY35G）
Working Condition
1、Altitude: 0-4500m
2、Temperature: -25℃--+45℃
3、Allowed working condition: solid, stable land, the vehicle should be horizontal
4、Wind force: ≤6 degree
Working Range
“KAI FAN” Brand KFM5353JQZ35G（QY35G）Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Main Parameters
|
Items |
Unit |
Value |
|
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
35000 |
|
Max. Lifting force of the basic boom |
kn.m |
1225 |
|
|
Max. Height of the basic boom |
m |
11.2 |
|
|
Max. Lifting force of the longest main boom |
kn.m |
638 |
|
|
Max. Height of the main boom |
m |
33 |
|
|
Max. Height of the vice boom |
m |
48 |
|
|
Max. Speed of the single rope |
m/min |
110 |
|
|
Working Speed |
Turning speed |
r/min |
0-2.4 |
|
Lifting time of the lift boom |
s |
70 |
|
|
Extension time of the lift boom |
s |
50 |
|
|
Traveling Parameters |
Max. Traveling speed |
km/h |
70 |
|
The whole weight |
kg |
35040 |
|
|
Max. Grade ability |
% |
26 |
|
|
Min. Turning radius |
m |
12 |
|
|
Min. Ground clearance |
m |
0.23 |
|
|
Approaching angle |
° |
17 |
|
|
Departure angle |
° |
11 |
|
|
Dimension Parameters |
External dimension（length×width×height） |
mm |
13312×2494×3500 |
|
Vertical span of outrigger |
m |
5.4 |
|
|
Horizontal span of outrigger |
m |
6.0 |
|
|
Length of main boom |
m |
10.5~33 |
|
|
Elevation of boom |
° |
-2~80 |
|
|
Length of vice boom |
m |
8.5~14.5 |
|
|
Chassis |
Model |
— |
TAZ5363J |
|
Engine model |
— |
WP10-290 |
|
|
Rated power/speed |
kw/（r/min） |
213/2200 |
|
|
Max. Torque/rotate speed |
n.m/（r/min） |
1160/1300-1600 |
|
Standard Equipments
1. WUYUE TAZ5363J
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
8. Hydraulic system
9. Outrigger
10. Superstructure control system
11. Chassis control system
12. Tool box
Vehicle Information
1. Manual Instruction (one set)
2. Operation manual of chassis (one set)
3. Guarantee of chassis (one set)
4. Certification of quality of the vehicle (one set)
5. Maintenance Manual (Operation instruction) (one set)
6. Operating safety certification (one set)
