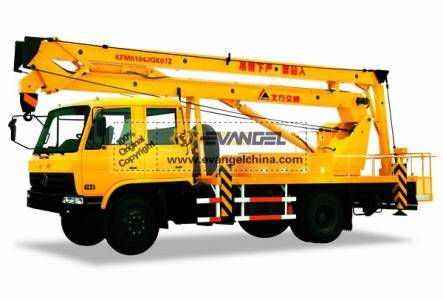

GKZ—20E Aerial work Platform


KaiFan Brand 20M Articulated Boom (DONGFONG) Aerial Working Platform Technical Parameters

KFM5104JGK07Z –GKZ-20E



Working Condition

1Altitude: 0-1000m

2Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree (wind speed ≤12.5m/s)



 Working Range

KFM5104JGK07Z Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



 Main Parameters

Bulletin No.

KFM5104JGK07Z

Type

GKZ-20E

External dimensionsmm

9000×2480×3710

Structure type

Three-section articulated boom

Working Cage

Internal sizemm

1160×650×1100

Rated loadingkg

200or 2 persons

Max. Working heightmm

20000

Max. Height from groundmm

18300

Max. Working radiusmm

10000

Working radius when doing the highest heightmm

3640

Working Boom

Max. Raising angle of lower boomº

70

Max. Raising angle of upper boomº

70

Max. Raising angle of jibº

90

Boom rack rotation angleº

360

Outrigger

Vertical spanmm

4150

Horizontal spanmm

4250

Traveling of vertical outriggermm

650

Adjustment

Single adjustable

Lifting

Rated lifting weightkg

995-2000

Rated lifting heightmm

9700



 Chassis Introduction

Traveling

Performance

Parameters

Chassis model

DONGFONG EQ1108NBJ

Persons

3+3

Axle base (mm)

3950

Wheel base (front/rear)mm

1900/1800

Driving mode

4×2

Front suspensionmm

1250

Rear suspensionmm

2730

Approaching angleº

30

Departure angleº

11

Max. Grade ability%

30

Min. Turning diametermm

19000

Min. Ground clearancemm

300

Engine

Engine model

ISDe160 30

Rated powerkw/r/min

118/2500

TorqueNm/r/min

600/1400

Max. Speedkm/h

90

Gas consumption per one hundred miles(diesel oil) L

18

Specification of the tire

9.00-20

The whole weightkg

10100

Max. Weight with whole loadingkg

10490



 Equipments Introduction

1.       DONGFENG EQ1108NBJ

2.       Working boom assembly

3.       Rotation structure assembly

4.       Body transformation assembly

5.       Extending outrigger

6.      Spare type & tool box

7.       Hydraulic system assembly

8.       Electric system assembly

9.       Safety control system

10.      Working cage assembly

11.     Safety belt

12.    Safety lift & Moving guard bar

13.      Balance slid rod device

14.    Maintenance bag & tools

15.    Safety warning & Light

16.    Air- conditioning

17.    Lifting device



 Vehicle Information

1.           Manual Instruction

2.          Operation manual of chassis

3.         Guarantee of chassis

4.         Certification of quality of the vehicle

5.          Maintenance Manual (Operation instruction)

6.          Operating safety certification
