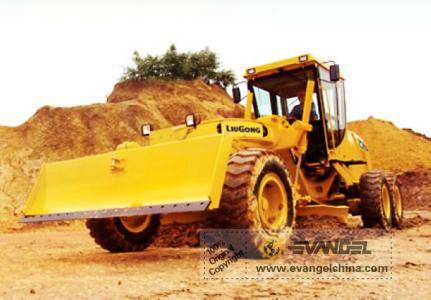

CLG416II Motor Grader
Features & Benefits
Operator Comfort and Safety
Dustproof, sound reducing, shock absorbing and anti-UV cabin.
Comfortable adjustable suspension seating.
Air Conditioning optional.
Full range of visibility.
Reliability
Power cuts off if hand brake not removed, this prevents accidental damage.
Parts, service and attachments you can count on.
World-class suppliers of key components.
Easy to Maintain
Hydraulic pipes on both sides of frame for easy maintenance.
Easy engine access and access to main maintenance points
Built for Efficiency
World-class Dongfeng Cummins engine with high power and low fuel consumption.
Scraping knife has 360 degree rotation, 90 degree right/left lateral adjustment, and 40-70 degree penetration for leveling, trenching, ditching, wall scraping and more.
LiuGong designed suction cooling system has better cooling, lower wind sensitivity and is less impacted by dirt than normal systems.
Meeting EU stage II/EPA tier 2 emission standards.
Specifications
|
Engine |
DCEC |
|
Net Power |
119 KW (160 hp) @ 2200 rpm |
|
Blade Width |
3,960 mm |
|
Maximum Speed |
39.5 km/h |
|
Draw Bar Pull |
81 kN |
|
Operating Weight |
13,800 kg |
