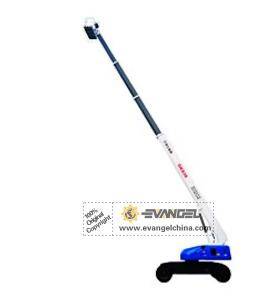

GKS38 Self-propelled Aerial Work Platform
Feature
Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation
Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.
Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.
Parameter
|
Items |
Unit |
Parameters |
|
Total length |
mm |
13250 |
|
Total width |
mm |
2490/3390 |
|
Total height |
mm |
3100 |
|
Axle base |
mm |
3600 |
|
Rated work height |
m |
38 |
|
Max. platform height |
m |
36.3 |
|
Max.work range |
m |
19 |
|
Arm luffing range |
° |
-12～+80 |
|
Arm luffing time |
s |
60 |
|
Arm contraction time |
s |
90 |
|
Max.rotation speed |
r/min |
0.8 |
|
Max.tail swing |
mm |
1400 |
|
Platform size |
mm |
1800×900×1150 |
|
Platform rotation range |
° |
180 |
|
Turntable rotation radius |
mm |
2650 |
|
Total weight under travel condition |
kg |
18500 |
|
Rated load |
kg |
150 |
|
Max. load |
kg |
450 |
|
Max.travel speed |
km/h |
4.8 |
|
Min. turning radius |
m |
7 |
|
Min.ground clearance |
mm |
260 |
|
Max. gradeability |
% |
40 |
|
Engine model |
B3.3 Tier3 |
|
|
Rated engine power |
kW/(r/min) |
63/(2600) |
|
Solid tyre |
12.00-20/8.5 |
The specification is subject to change without notice.
